陶瓷晶体谐振器 3G-3225
陶瓷晶体谐振器 3G-3225
  • 8HZ
  • -20°-+75°/-40°-+85°
  • Application
  • SMD Glass Crystal
    3.2x2.5x1.0

陶瓷晶体谐振器 3G-3225

 详情说明
Product Details
Product parameter
Product parameter
Frequency range 8HZ Adjust the frequency difference ±20ppm/±10ppm
Temperature frequency difference ±20ppm/±10ppm Operating temperature -20°-+75°/-40°-+85°
Storage temperature -40°-+85°/-40°-+125° Static capacitance 3pF MAX
Excitation power 1-100μw Load capacitance 8pF,10pF,12pF,20pF
Insulation Resistance 500MΩ@DC100V Annual aging rate ±3pm/year MAX

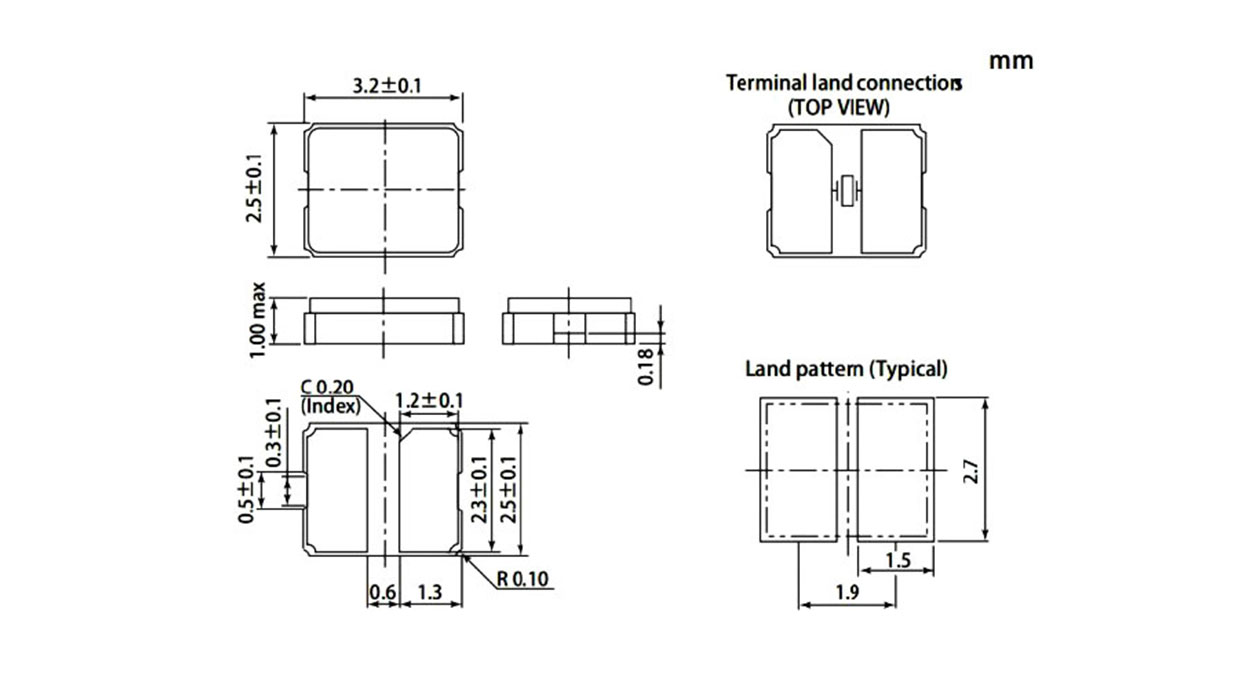

Ceramic Crystal resonator drawing
DIMENSION（Unit:mm）
