石英晶体谐振器 1S-1612
石英晶体谐振器 1S-1612
  • 24.HZ-60HZ
  • -20°-+75°/-40°-+85°
  • Application
  • SMD Crystal Units
    1.6×1.2×0.35

石英晶体谐振器 1S-1612

 详情说明
​
Product Details
Product parameter
Product parameter
Frequency range 24.HZ-60HZ Adjust the frequency difference ±20ppm/±10ppm
Temperature frequency difference ±20ppm/±10ppm Working temperature -20°-+75°/-40°-+85°
Storage temperature -40°-+85°/-40°-+125° Direct capacitance 3pF MAX
Excitation power 1-100μw Load capacitance 8pF,10pF,12pF,20pF
Insulation resistance 500MΩ@DC100V Annual aging rate ±3pm/year MAX

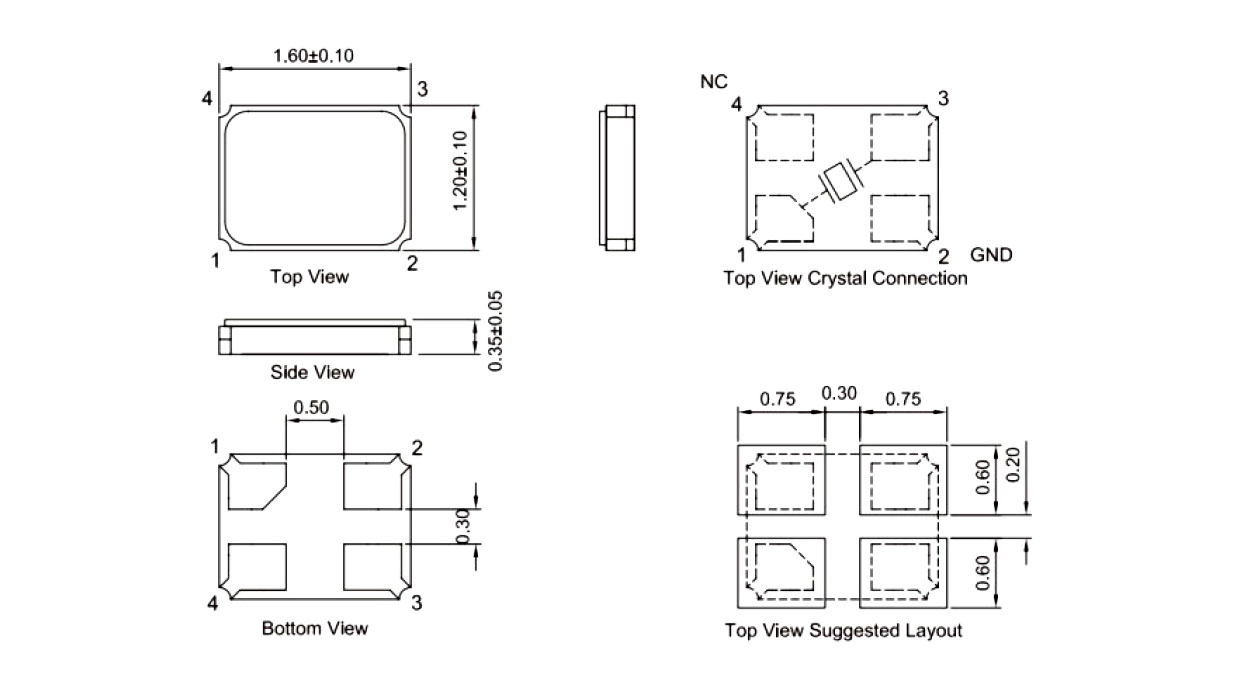

Drawing of quartz crystal resonator
DIMENSION（Unit:mm）
Application industry
Technical team with more than 10 years of experience controls the whole process
5g communication
automotive electronics
Intelligent wearable
Smart home
Medical equipment
Server storage device
Security equipment
Telecommunications equipment
