石英晶体振荡器 3C-3225
石英晶体振荡器 3C-3225
  • 1HZ-60HZ
  • -20°-+75°/-40°-+85°
  • Application
  • SMD Crystal Oscillator
    3.2x2.5x1.0

石英晶体振荡器 3C-3225

 详情说明
Product Details
Product parameter
Product parameter
Frequency range 32.768HZ-60HZ Output Mode COMS / TTL
Oscillating mode Fundamental / 3rd Overtone Supply Voltage 1.8 V 2.5 V | 2.8 v, 3.3V 5V
Load-driven capability 15 pF Frequency stability ±20ppm/±30ppm
Operating temperature -20°-+75°/-40°-+85° Storage temperature -55°-+125°
Maximum and minimum voltage 0.1VDD / 0.9VDD UP/DOWN time 8 ns Max
Input Current 15 mA Max Symmetry ratio 45-55 %
Starting time 5 ms Max Relative jitter 1psMax
Annual aging rate ±3ppm/yearMax Model number 3.2x 2.5 x1.0

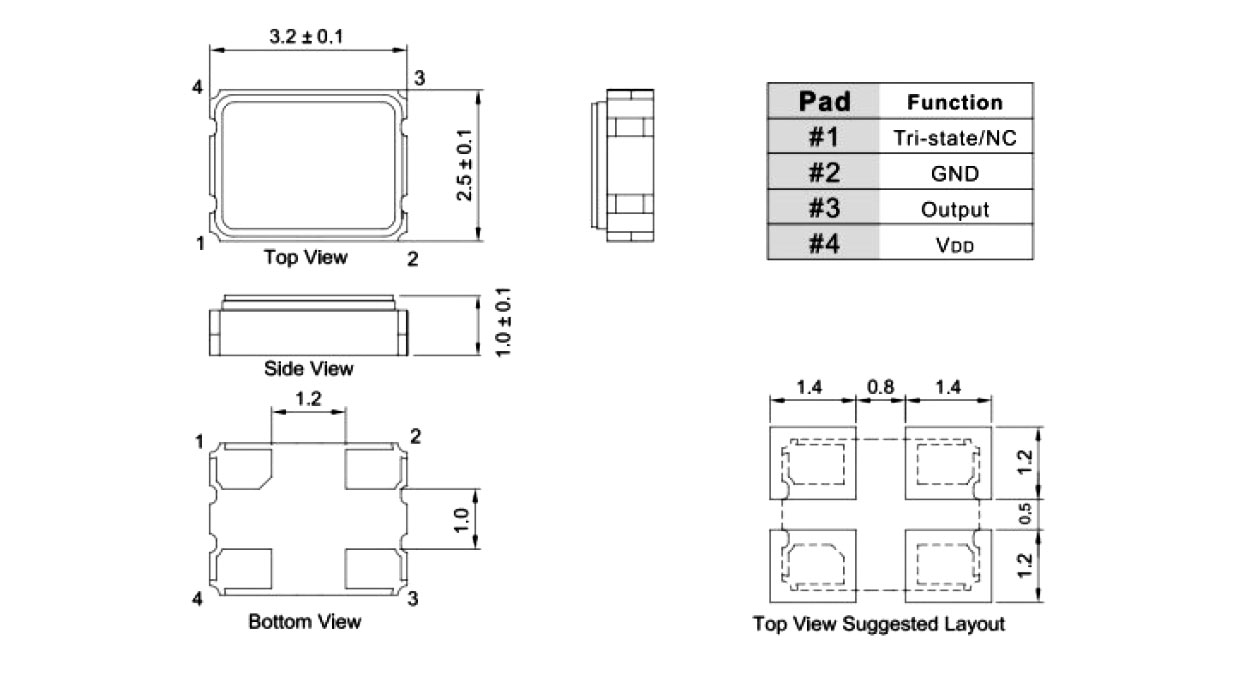

Diagram of crystal resonator
DIMENSION（Unit:mm）
Application industry
Technical team with more than 10 years of experience controls the whole process
5g communication
automotive electronics
Intelligent wearable
Smart home
Medical equipment
Server storage device
Security equipment
Telecommunications equipment
